Demon Axle — Complete — Heavy-Duty — Rear Left/Right/Middle — Polaris Ace/Sportsman
- Wide articulation angles and dual plunge design prevents the axle from binding
- Can fit 2", 3", 4" and 5" bracket lifts/portal gear lifts/a-arms of particular brands
- 10% - 15% increase in CV joint size compared to regular joints
- 15% - 20% increase in diameter compared to OEM axles
- Dual heat treated high-strength chromoly steel shafts
$215.00
In stock. Ships in 2–4 business days · free shipping over $150.
View cart & check out →
Questions? Call the shop: 801-361-3010
Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014
Description & features9 features
On some models, minor grinding of the A-arm bolt or removing washer may be required to prevent contact with the axle boot clamp.
- Wide articulation angles and dual plunge design prevents the axle from binding
- Can fit 2", 3", 4" and 5" bracket lifts/portal gear lifts/a-arms of particular brands
- 10% - 15% increase in CV joint size compared to regular joints
- 15% - 20% increase in diameter compared to OEM axles
- Dual heat treated high-strength chromoly steel shafts
- Thermoplastic polyester elastomer (TPEE) boots
- Boots packed with high-load molybdenum grease

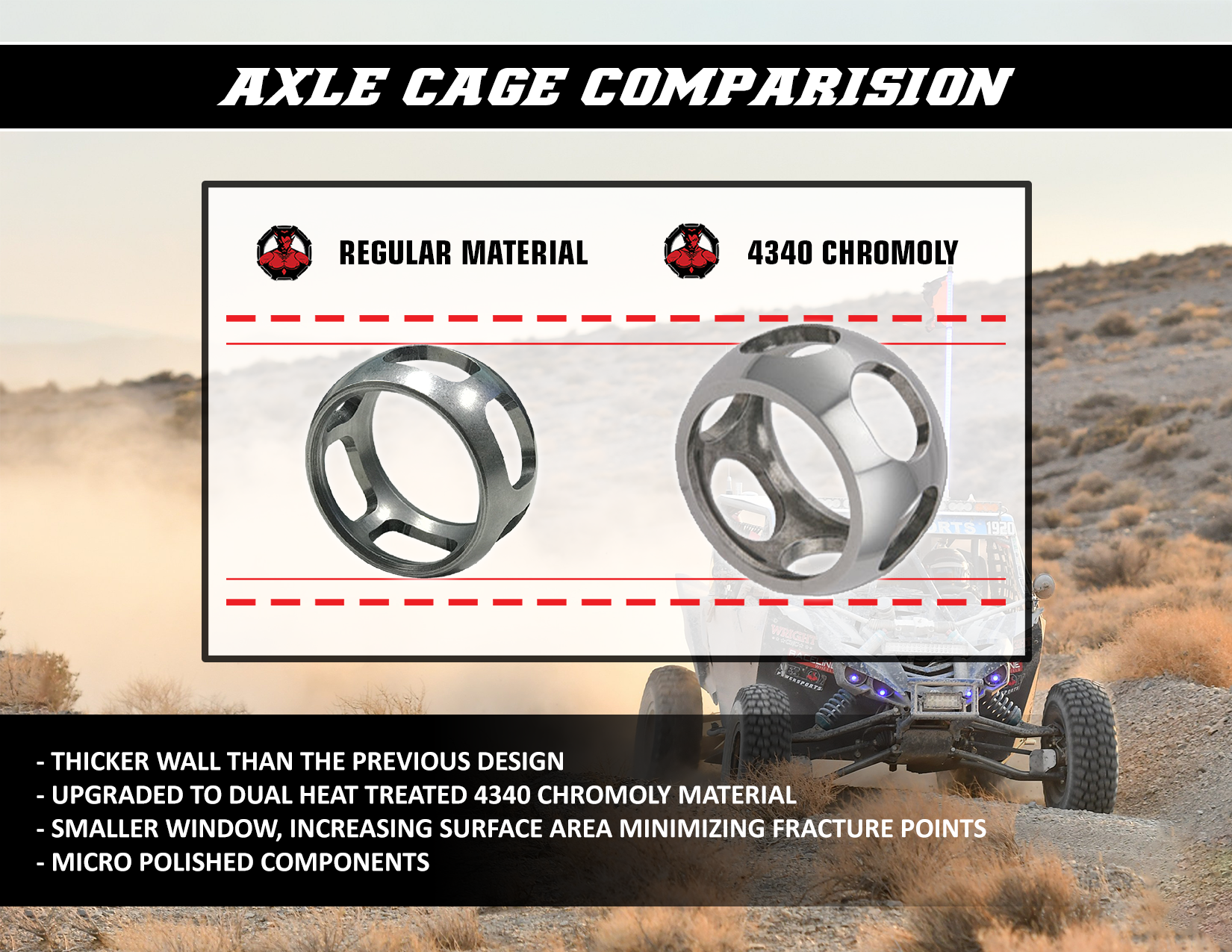

- Inner cage made up of 4340 chromoly material
- Precision CNC machined
Specifications12 specs
- Base Color
- Black
- Duty
- Heavy-Duty
- Color/Finish
- Raw, Black
- Mounting Position
- Rear Right, Rear Left, Middle
- Units
- Each
- Material
- Chromoly Steel
- Finish
- Raw
- Riding Style
- ATV, UTV
- Type
- Complete
- Shipping weight
- 13.29 lb
- Package size
- 31.7 × 5.3 × 5.2 in
- Country of origin
- China
Fitment39 models · Polaris
Polaris39 models
- Ace 570 4x42015
- ACE 570 SP2015
- Sportsman 325 ETX EFI 4x42015
- Sportsman 450 HO2016–2025
- Sportsman 450 HO EPS2016–2025
- Sportsman 450 HO Utility Edition2017–2019, 2022–2025
- Sportsman 500 EFI Touring2008–2009
- Sportsman 500 EFI X22006, 2008–2009
- Sportsman 500 EFI X2 Deluxe2007
- Sportsman 500 HO Touring2010–2011
- Sportsman 5702015–2018, 2021–2022, 2024–2025
- Sportsman 570 6x62019–2021, 2023, 2025
- Sportsman 570 Big Boss 6x6 EPS2017–2018
- Sportsman 570 Big Boss EPS 6x62022
- Sportsman 570 EFI 4x42019, 2022–2023
- Sportsman 570 EPS2015–2021, 2023–2025
- Sportsman 570 EPS Utility Edition2017–2019, 2022
- Sportsman 570 Hunter Edition2020–2022, 2025
- Sportsman 570 Premium2020–2021, 2023–2025
- Sportsman 570 Ride Command Edition 4x42022
- Sportsman 570 SP2015–2018
- Sportsman 570 SP EPS 4x42019
- Sportsman 570 Touring2015–2021, 2023, 2025
- Sportsman 570 Touring EPS2015–2023, 2025
- Sportsman 570 Touring Premium2020–2023
- Sportsman 570 Touring SP2015–2019
- Sportsman 570 Touring Ultimate2025
- Sportsman 570 Trail2021–2023, 2025
- Sportsman 570 Utility HD2023–2025
- Sportsman 570 Utility HD LE2021
- Sportsman 570 X22020–2021, 2025
- Sportsman 570 X2 EPS2015–2019
- Sportsman 700 MV2007
- Sportsman 800 EFI X22007
- Sportsman 800 EFI X2 Deluxe2007
- Sportsman ETX2015
- Sportsman Touring 500 LE EFI2008
- Sportsman Touring 570 4x42022
- Sportsman X2 5002007
Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.
Part numbersOEM cross-reference
- Salto part #
- 0214-1343
- Demon part #
- PAXL-6076HD
- UPC
- 840844001982
- Replaces OEM #
- 1333275
Shipping
In stock at a distributor warehouse. Ships in 2–4 business days by ground.
Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.
Questions4 answers
- Is it in stock?
- Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
- How fast will it get to me?
- Usually 2–4 business days by ground.
- Will it fit my machine?
- The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
- Is this genuine Demon?
- Yes. It ships new from the same distributors the big online stores buy from — Demon part #PAXL-6076HD.
