Legend Suspension AXEO Performance Front Suspension — 41 mm — +2"

• This product is not designed for use with 21" or 23" front wheels.

• Requires the use of Harley Davidson upper fork tubes OEM P/N 83804-09 (22.55" long). Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle.

• '97-'01 models equipped with stock air forks will require additional purchase of Harley Davidson OEM P/N's 45419-80 (2) and 45733-48 (2) to install.

• Part #0414-0597 requires the use of Harley-Davidson upper fork tubes OEM #83804-09 (22.55" L).

• Performance spring rate delivers agile handling for aggressive riders without sacrificing comfort
• Specifically designed to increase ride height on FL touring models
• Imporves cornering clearance, lean angles, and eliminates dragging floorboards and footpegs
• Improves straight-line stability, high-speed cornering, and maneuverability
• Increases resistance to bottoming out on large bumps or potholes
• Threaded pre-load adjuster allows tuning for various rider weights and increased pre-load range
• Reduces front-end dive and improves front tire traction under aggressive braking
• Designed for optimum performance with Legend's 14" Revo-Arc rear suspensions

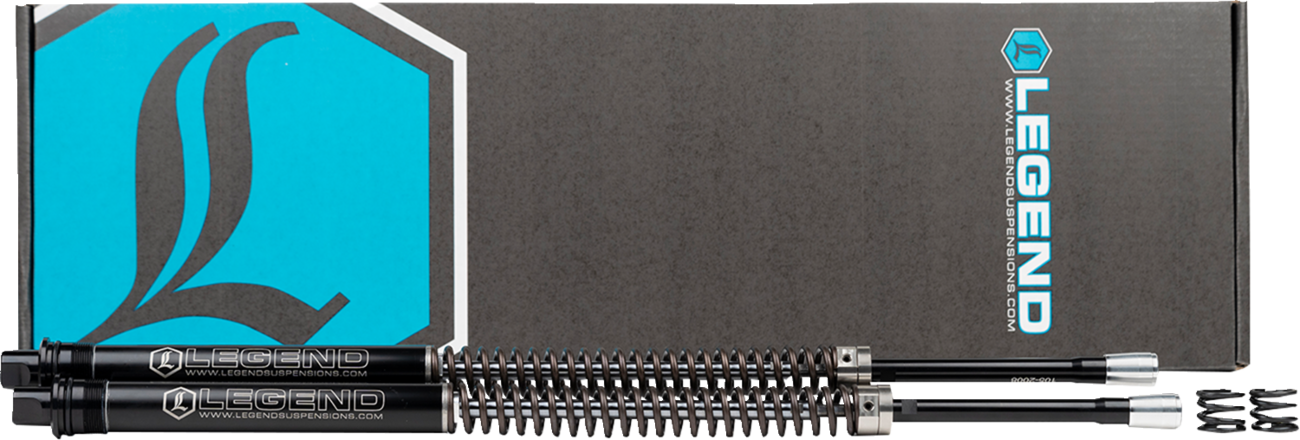

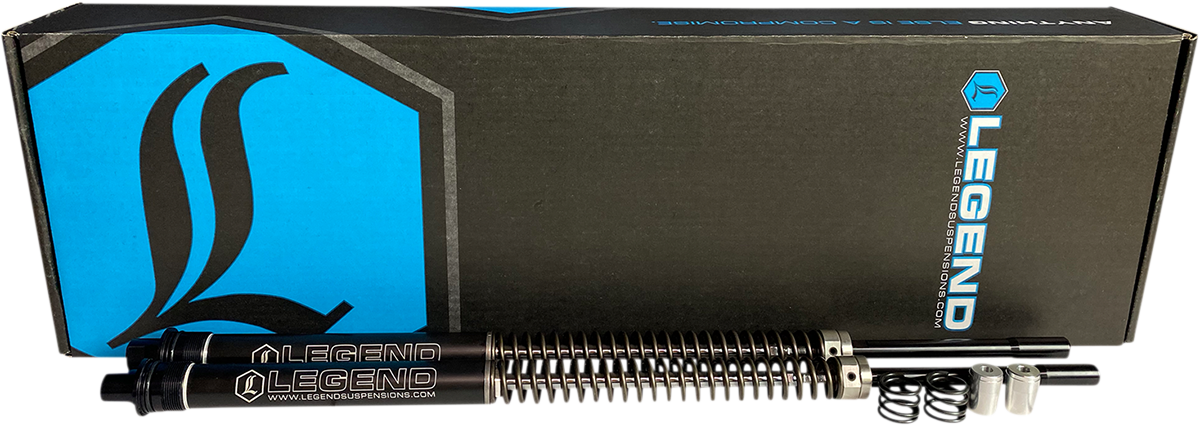

• Includes two 2" over monotube, dual chambered damper cartridges, and two top out springs
• Designed to be used with stock diameter front wheels
• For Extended Fork Tubes.
• Does not fit '23+ CVO Road Glide or CVO Street Glide models with inverted forks.

Length

Two Inches Longer Than Stock

Color/Finish

Black

Height Adjustment

Extends 50.80 mm, Extends 2.00"

Riding Style

Street

Fork Tube Diameter

41.00 mm

Material

Billet Aluminum

Model

AXEO Performance (+2")

Style

Extended Fork Tubes

Type

Preload Adjustable Monotube

Units

Kit

Shipping weight

7.75 lb

Package size

34.2 × 10.7 × 4.9 in

Country of origin

USA

Salto part #

0414-0597

Legend Suspension part #

0414-0597
