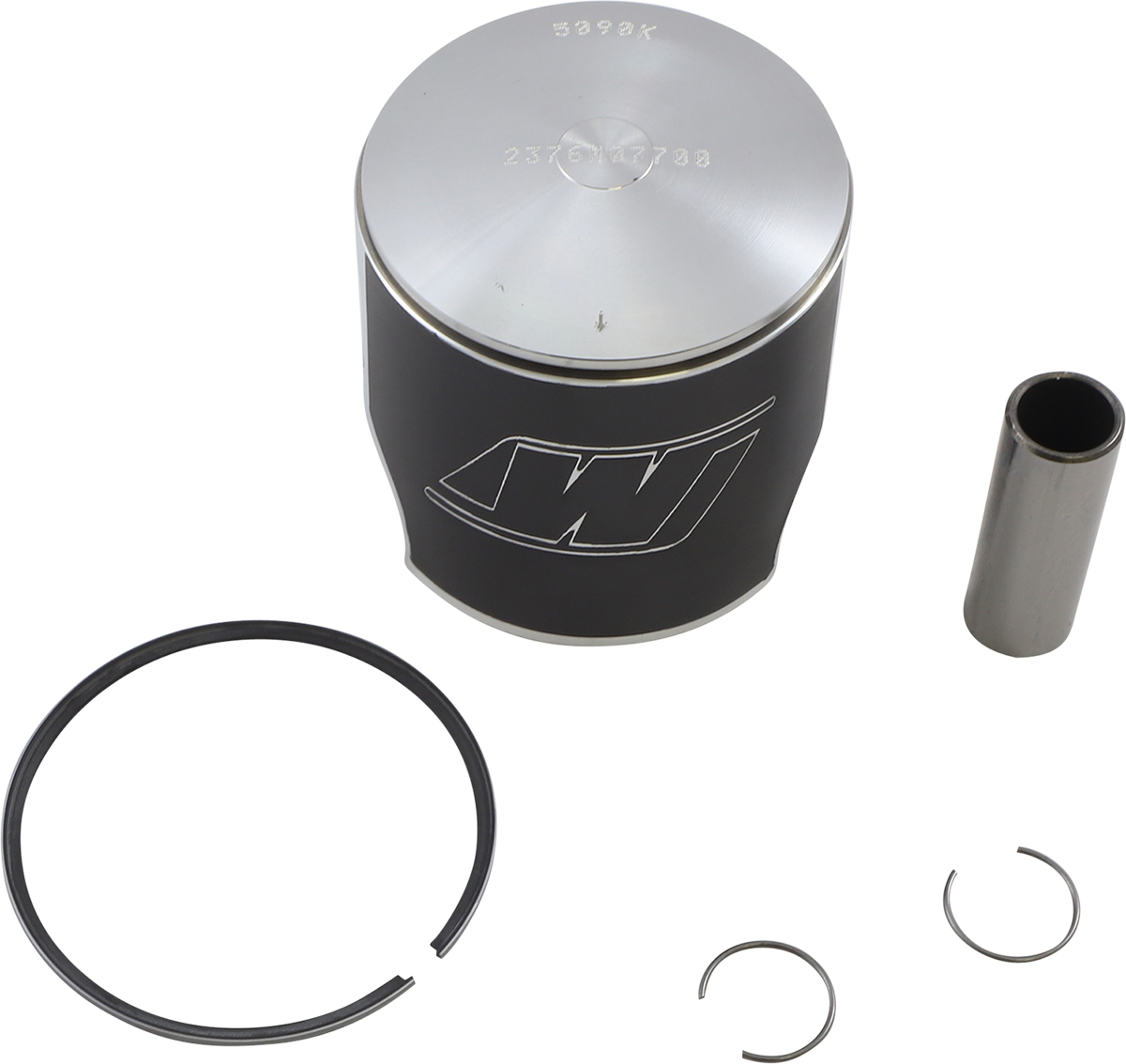

Wiseco Piston Kit with Gaskets — Standard — Twin Cam 88"/96"/103" Bored to 1746 cc (106 Cubic Inch)

Wiseco · #0903-1170 · Top End / Engine

Forged from high-silicon aluminum alloy for maximum strength and dependability
Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage
Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
Pistons are made in the USA
Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.

$746.95

In stock. Ships in 2–4 business days · free shipping over $150.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Description & features5 features

For '99-'17 Twin Cam 88"/96"/103" bored to 1746 cc (106 cubic inch) with 4-3/8" stroke crank (except twin cooled models).

103" kits require cylinder boring.

Kit Includes:

• 2x Pistons

• 2x Ring Set

• 2x Wrist Pins

• 4x Circlips

• Top-End Gasket Kit

Forged from high-silicon aluminum alloy for maximum strength and dependability
Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage
Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
Pistons are made in the USA
Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.

Specifications15 specs

Bore - Oversize: Standard
Engine Type: 4-Stroke
Displacement: 1746 cc
Piston Material: 2618 Aluminum Alloy
Riding Style: Street
Compression Ratio: 10.0:1
Units: Kit
Color/Finish: Aluminum
Piston Diameter: 3.934"
Skirt Coating: ArmorGlide®
Bore Size: 3.937"
Type: Top End
Shipping weight: 3.8 lb
Package size: 13.7 × 8.8 × 4.4 in
Country of origin: USA

Fitment72 models · Harley-Davidson

Harley-Davidson72 models

15th Anniversary Fat Boy FLSTF2005
Electra Glide Ultra Classic FLHTCU1999
FLD Switchback2012–2016
FLHR Road King1999–2016
FLHRCI Road King Classic1999–2006
FLHRI Road King2000–2001
FLHRS Road King Custom2004–2007
FLHRSI Road King Custom2004–2006
FLHT Electra Glide Standard1999–2006, 2021
FLHTC Electra Glide Classic1999–2005, 2007–2013
FLHTCI Electra Glide Classic1999–2006
FLHTCU Electra Glide Ultra Classic2007–2016
FLHTCUL Electra Glide Ultra Classic Low2015–2016
FLHTCUTG Tri Glide Ultra2009–2013
FLHTI Electra Glide Standard2003–2006
FLHTK Ultra Limited2010–2013
FLHX Street Glide2006–2016
FLHXI Street Glide2006
FLHXS Street Glide Special2014–2016
FLHXXX Street Glide Trike2010–2011
FLRT Freewheeler2015–2016
FLS Softail Slim2012–2017
FLSS Softail Slim S2016–2017
FLST Heritage Softail2006
FLSTC Heritage Softail Classic2000–2017
FLSTCI Heritage Softail Classic2001–2006
FLSTF Fat Boy2000–2017
FLSTFB Fat Boy Lo2010–2016
FLSTFBS Fat Boy S2016–2017
FLSTFI Fat Boy2001–2006
FLSTI Heritage Softail2006
FLSTN Softail Deluxe2005–2017
FLSTNI Softail Deluxe2005–2006
FLSTS Heritage Springer2000–2003
FLSTSB Cross Bones2008–2011
FLSTSC Softail Springer Classic2005–2007
FLSTSCI Softail Springer Classic2005–2006
FLSTSI Heritage Springer2001–2003
FLTR Road Glide1999–2002, 2007–2010, 2016
FLTRI Road Glide1999–2006
FLTRU Road Glide Ultra2011–2013
FLTRX Road Glide2015
FLTRX Road Glide Custom2011–2013
FLTRXS Road Glide Special2015–2016
FXCW Rocker2008–2009
FXCWC Rocker C2008–2011
FXD Dyna Super Glide1999–2005, 2007–2010
FXDB Street Bob2006–2017
FXDC Super Glide Custom2005, 2007–2014
FXDCI Super Glide Custom2005–2006
FXDF Fat Bob2008–2017
FXDI Dyna Super Glide2004–2006
FXDI35 Dyna 35th Anniversary Super Glide2006
FXDL Dyna Low Rider1999–2005, 2007–2009, 2015–2017
FXDLS Low Rider S2016–2017
FXDS-Conv Dyna Convertible1999–2000
FXDWG Dyna Wide Glide1999–2005, 2007–2008, 2010–2017
FXDWGI Dyna Wide Glide2004–2006
FXDX Dyna Super Glide Sport1999–2005
FXDXI Dyna Super Glide Sport2004–2005
FXS Blackline2011–2013
FXSB Breakout2013–2017
FXST Softail Standard2000–2007
FXSTB Night Train2000–2009
FXSTBI Night Train2001–2006
FXSTC Softail Custom2007–2010
FXSTD Softail Deuce2000–2007
FXSTDI Softail Deuce2001–2006
FXSTI Softail Standard2001–2006
FXSTS Springer Softail2000–2006
FXSTSI Springer Softail2001–2006
Road King EFI FLHR1999

Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 0903-1170
Wiseco part #: VT2797

Shipping

In stock at a distributor warehouse. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.

Questions4 answers

Is it in stock?: Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Wiseco?: Yes. It ships new from the same distributors the big online stores buy from — Wiseco part #VT2797.
