Feuling Parts Camchest Kit — HP+® Chain Drive Conversion — 574 Reaper Series — Twin Cam

In warehouse stock

Feuling Parts Camchest Kit — HP+® Chain Drive Conversion — 574 Reaper Series — Twin Cam

Feuling Parts · #0925-1290 · Bottom End / Camshafts & Install Kits

Update old mechanical style cams and tensioners to hydraulic tensioner system
25°-35° cooler engine temperatures
15-30 more PSI of oil pressure
Eliminate wet sumping, blow by and oily air cleaners

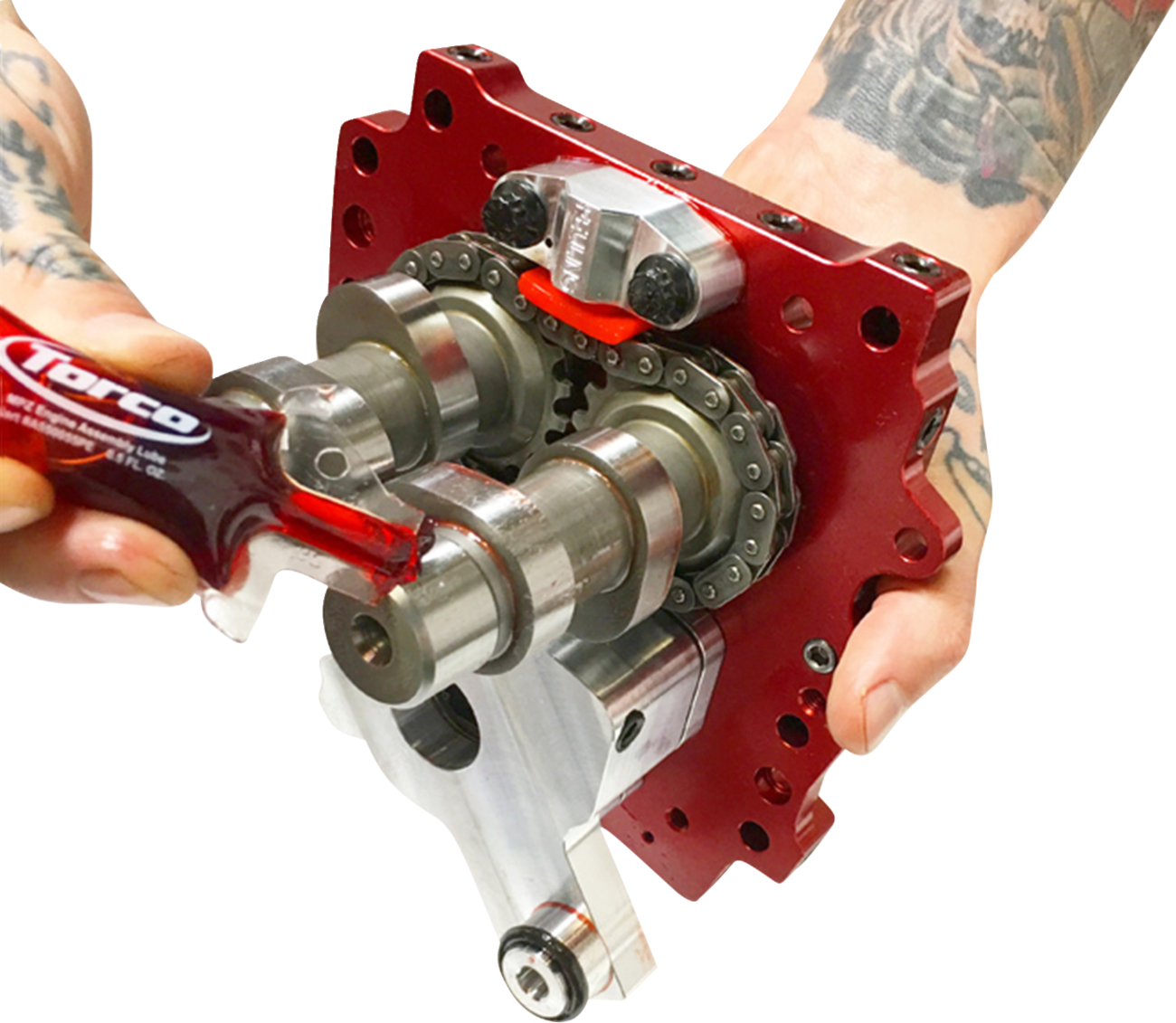

Kit includes Feuling HP+® high volume oil pump, High Flow camplate, Reaper® series camshafts, HP+ hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware

$1939.95

In stock. Ships in 2–4 business days · free shipping over $150.

Can’t ship to California.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Description & features7 features

2100 - 6500 rpm power range.

Includes:

• HP+ High Volume Oil Pump

• High Flow Camplate

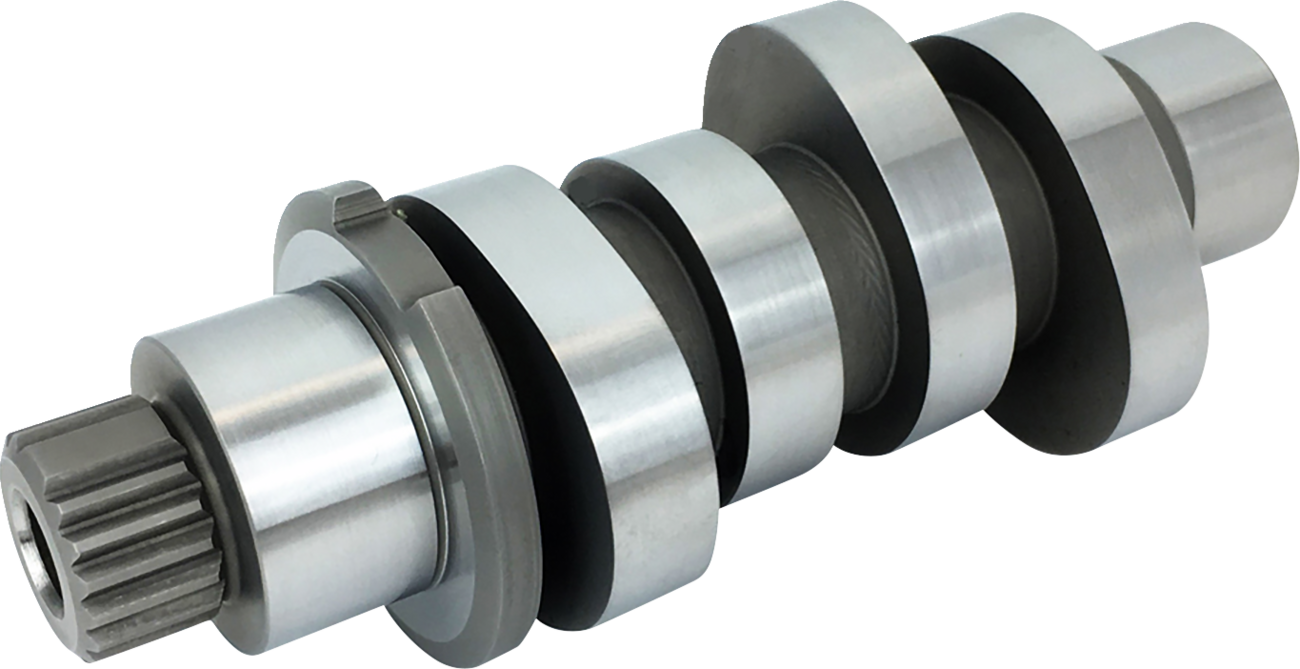

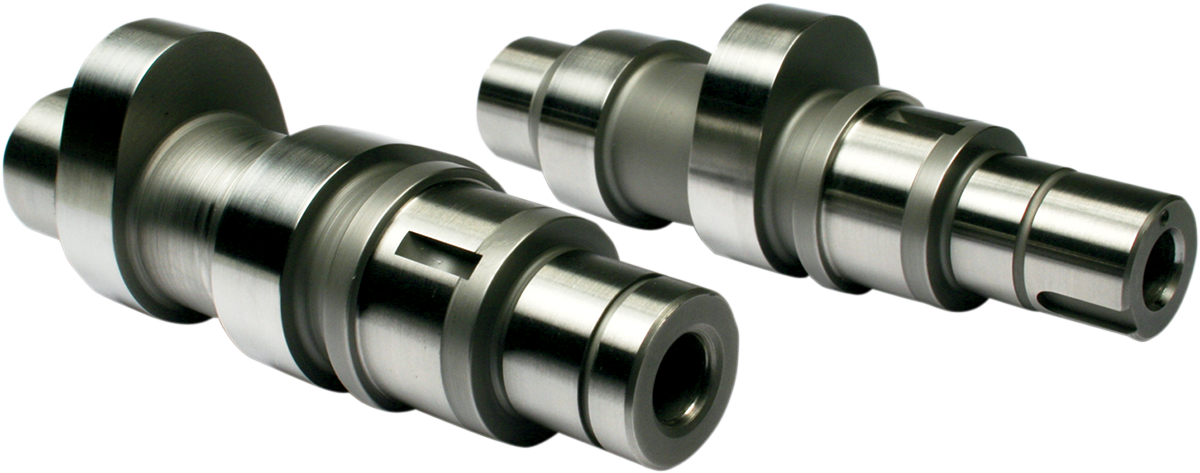

• Reaper Series Conversion Camshafts

• HP+ Hydraulic Roller Lifters

• Quick Install Adjustable Pushrods

• Chrome Pushrod Tubes

• Hydraulic Tensioners

• Sprockets

• Roller Chains

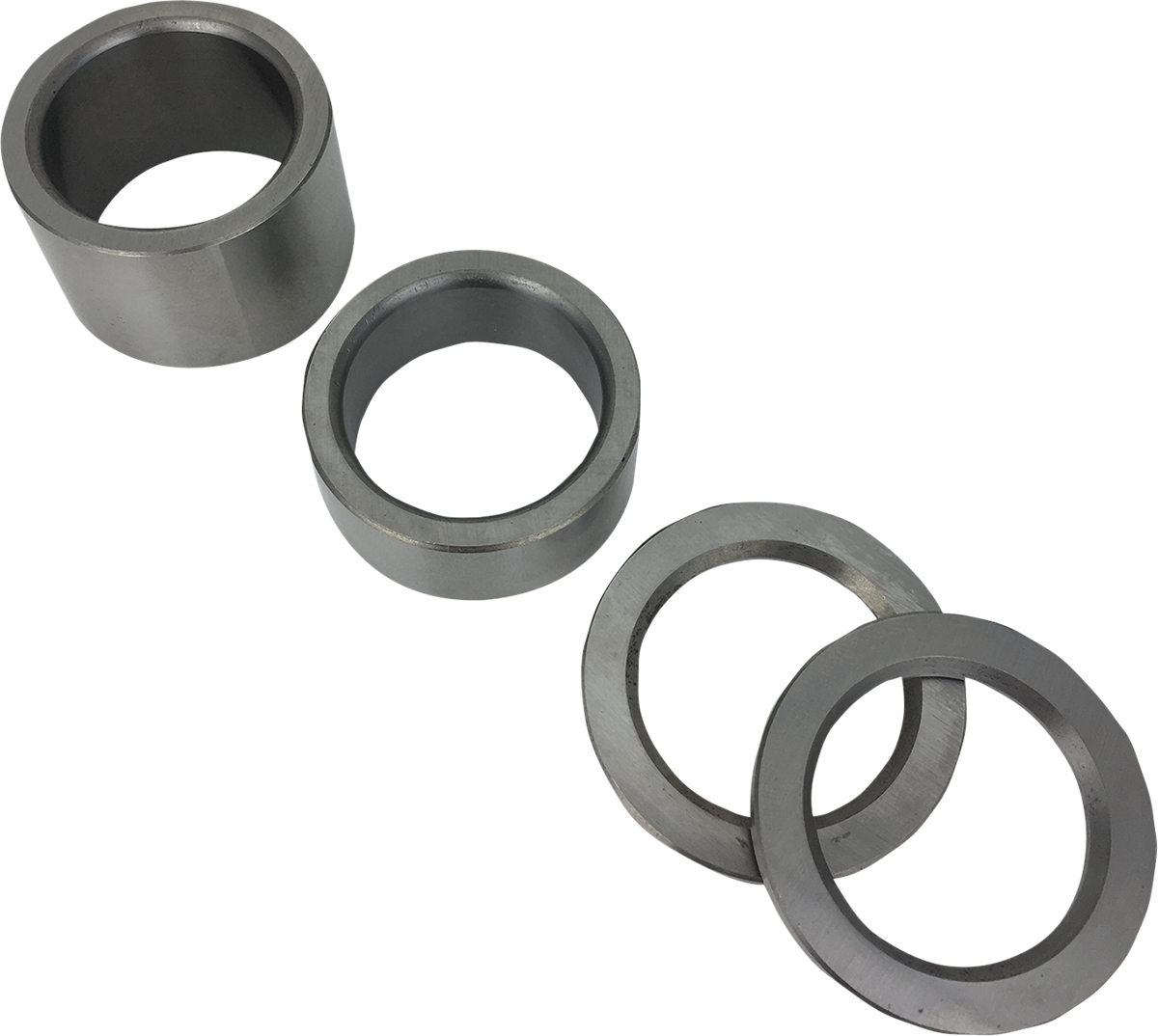

• Cam Sprockets Spacers

• Timken Cam Bearings

• Gaskets

• O-Rings

• Exhaust Gaskets

• ARP Fasteners

• Washers

• Moly Paste

• Loctite

• Hardware

Update old mechanical style cams and tensioners to hydraulic tensioner system
25°-35° cooler engine temperatures
15-30 more PSI of oil pressure
Eliminate wet sumping, blow by and oily air cleaners
Kit includes Feuling HP+® high volume oil pump, High Flow camplate, Reaper® series camshafts, HP+ hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware
Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation)
For '99-'06 Twin Cam, except for '06 Dyna.

Specifications22 specs

Application: Exhaust, Intake
Grind: 574 Series
Intake Open: 15°
Intake Close: 45°
Intake Lobe Centerline: 105°
Exhaust Lift: 0.574"
Model: HP+®
Riding Style: Street
Exhaust Duration: 255°
Features: Quick Install Adjustable Pushrods
Intake Duration: 240°
Type: Chain Conversion
Exhaust Lift at TDC: 0.143"
Exhaust Lobe Centerline: 113.5°
Intake Lift at TDC: 0.163"
Intake Lift: 0.574"
Units: Kit
Exhaust Close: 14°
Exhaust Open: 61°
Shipping weight: 13.76 lb
Package size: 16 × 10.8 × 6 in
Country of origin: USA

Fitment64 models · Harley-Davidson

Harley-Davidson64 models

15th Anniversary Fat Boy FLSTF2005
Electra Glide Police FLHTPI1999–2006
Electra Glide Police FLHTP1999–2006
Electra Glide Standard EFI FLHTI2000, 2002
Electra Glide Ultra Classic FLHTCU1999–2006
FLHR Road King1999–2006
FLHRCI Road King Classic1999–2006
FLHRI Road King2000–2006
FLHRS Road King Custom2004–2006
FLHRSEI Screamin Eagle Road King2002
FLHRSEI2 Screamin Eagle Road King 22003
FLHRSI Road King Custom2004–2006
FLHT Electra Glide Standard1999–2006
FLHTC Electra Glide Classic1999–2006
FLHTCI Electra Glide Classic1999–2006
FLHTCSE Screamin Eagle Electra Glide2004
FLHTCSE2 Screamin Eagle Electra Glide 22005
FLHTCUI Electra Glide Ultra Classic1999–2006
FLHTCUSE Screamin Eagle Ultra Classic Electra Glide2006
FLHTI Electra Glide Standard2003–2006
FLHX Street Glide2006
FLHXI Street Glide2006
FLST Heritage Softail2006
FLSTC Heritage Softail Classic2000–2006
FLSTCI Heritage Softail Classic2001–2006
FLSTF Fat Boy2000–2006
FLSTFI Fat Boy2001–2006
FLSTFSE Screamin Eagle Fat Boy2005–2006
FLSTI Heritage Softail2006
FLSTN Softail Deluxe2005–2006
FLSTNI Softail Deluxe2005–2006
FLSTS Heritage Springer2000–2003
FLSTSC Softail Springer Classic2005–2006
FLSTSCI Softail Springer Classic2005–2006
FLSTSI Heritage Springer2001–2003
FLTR Road Glide1999–2006
FLTRI Road Glide1999–2006
FLTRSEI Screamin Eagle Road Glide2000
FLTRSEI2 Screamin Eagle Road Glide 22001
FXD Dyna Super Glide1999–2005
FXDC Super Glide Custom2005
FXDCI Super Glide Custom2005
FXDI Dyna Super Glide2004–2005
FXDL Dyna Low Rider1999–2005
FXDLI Dyna Low Rider2004–2005
FXDS-Conv Dyna Convertible1999–2000
FXDWG Dyna Wide Glide1999–2005
FXDWG2 CVO Dyna Wide Glide2001
FXDWG3 CVO Dyna Wide Glide2002
FXDWGI Dyna Wide Glide2004–2005
FXDX Dyna Super Glide Sport1999–2005
FXDXI Dyna Super Glide Sport2004–2005
FXDXT Dyna Super Glide T-Sport2001–2003
FXST Softail Standard2000–2006
FXSTB Night Train2000–2006
FXSTBI Night Train2001–2006
FXSTD Softail Deuce2000–2006
FXSTDI Softail Deuce2001–2006
FXSTDSE Screamin Eagle Softail Deuce2003–2004
FXSTI Softail Standard2001–2006
FXSTS Springer Softail2000–2006
FXSTSI Springer Softail2001–2006
Road King EFI FLHR1999
Wide Glide EFI FXDWGI2000, 2002–2003

Fitment comes from the distributor’s catalog. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 0925-1290
Feuling Parts part #: 7221

Shipping

In stock at a distributor warehouse. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.

California: this part can’t ship to a California address.

Questions4 answers

Is it in stock?: Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Feuling Parts?: Yes. It ships new from the same distributors the big online stores buy from — Feuling Parts part #7221.
