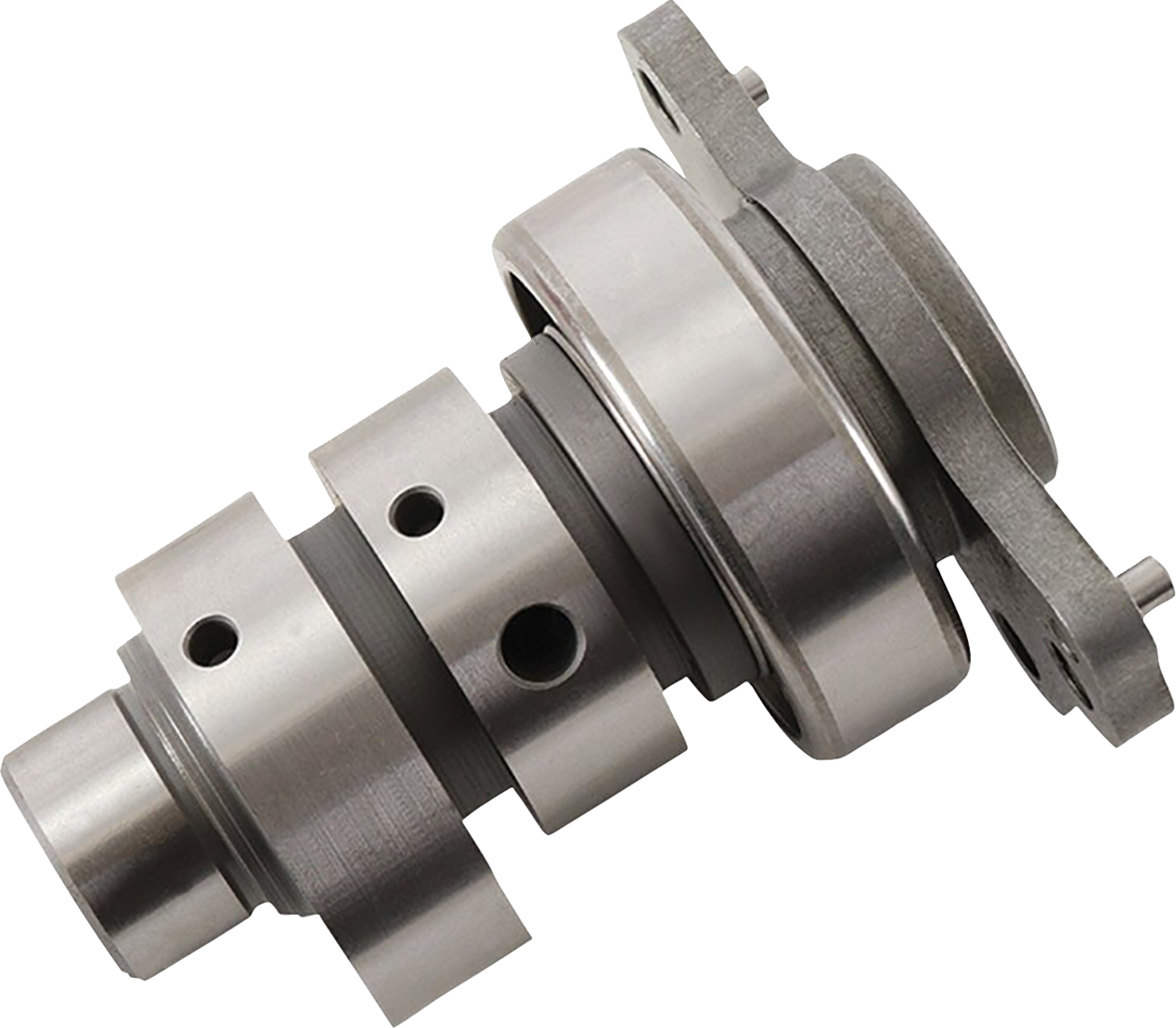

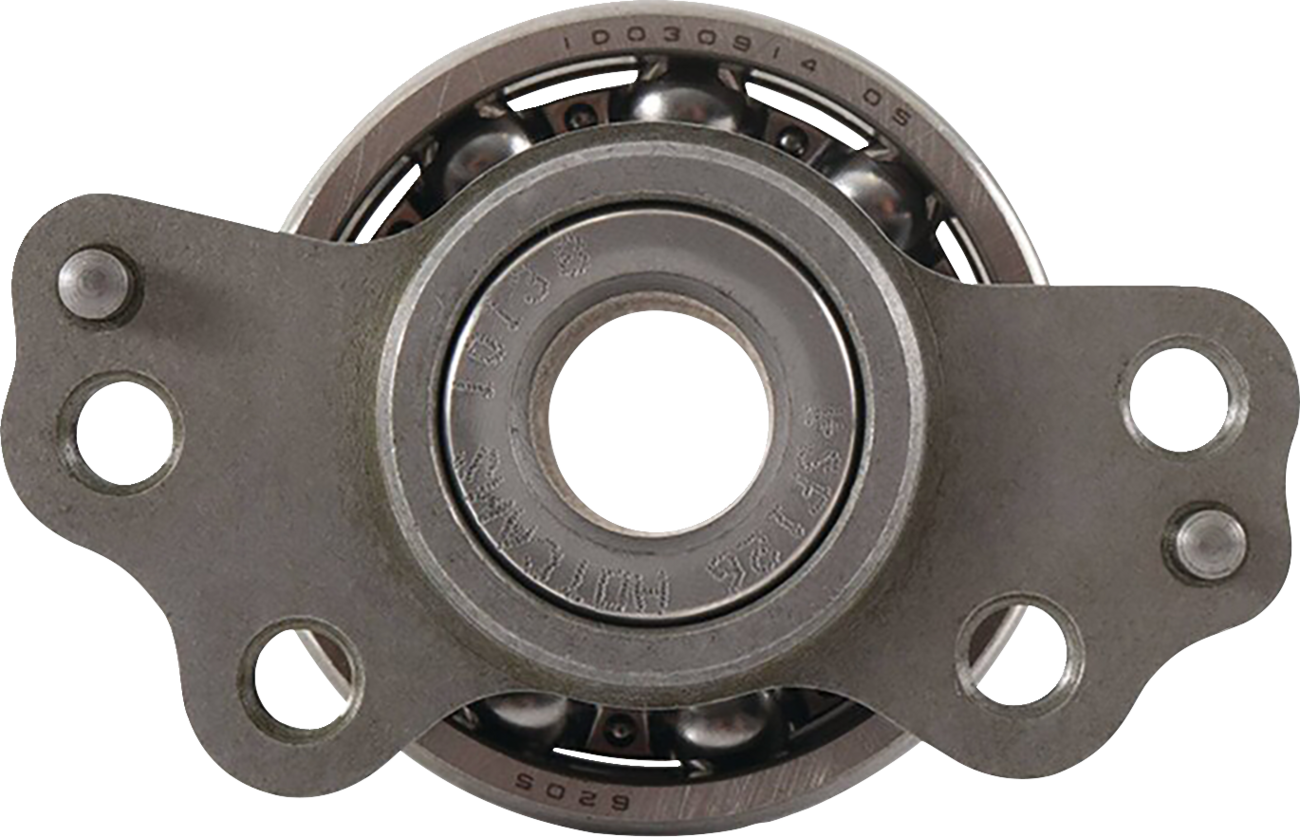

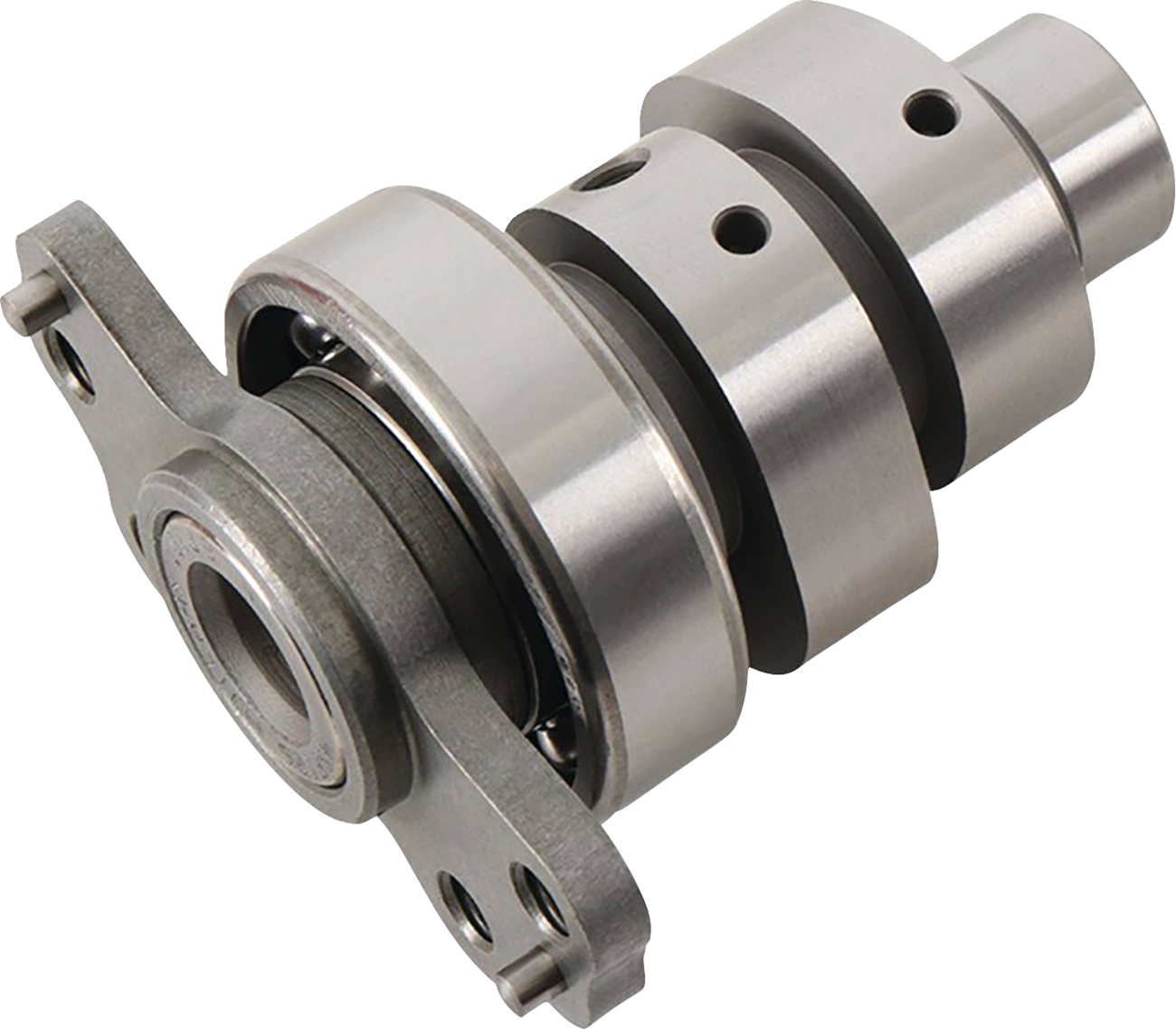

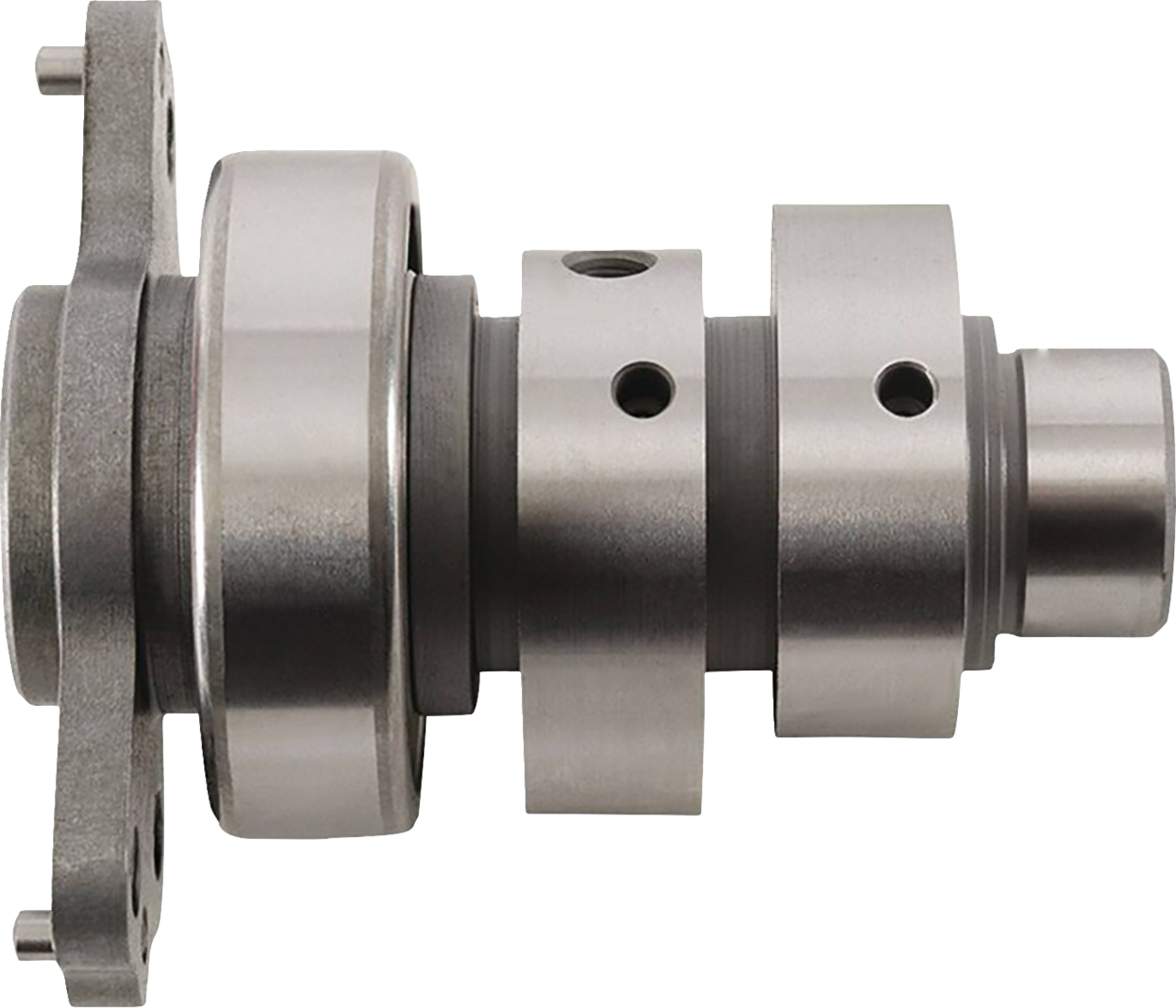

Hot Cams Camshaft — Single Cam — Stage 1 — Yamaha YFM700R Raptor

Mid range and top end gains.

Uses stock valve springs.

Uses stock decompresson mechanism.

For single cam engine.

Intake Valve Lash: 0.100 mm.

Exhaust Valve Lash: 0.180 mm.

• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for low end torque.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).

Application

Intake, Exhaust

Units

Each

Exhaust Duration

243°

Exhaust Lift

8.600 mm

Exhaust Lobe Centerline

102°

Intake Duration

253.500°

Intake Lift

9.600 mm

Intake Lobe Centerline

111.750°

Riding Style

ATV

Type

Stage 1

Shipping weight

1.5 lb

Package size

9.5 × 3 × 3 in

Country of origin

Taiwan

Salto part #

0925-1591

Hot Cams part #

4131-1

In stock. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is checked again before your card is charged.

California: this part can’t ship to a California address.

Is it in stock?

Yes — it’s in stock right now. We check again the moment you order, before anything is charged.

How fast will it get to me?

Usually 2–4 business days by ground.

Will it fit my machine?

It’s listed for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.

Is this genuine Hot Cams?

Yes. It’s new and genuine, straight from Salto — Hot Cams part #4131-1.
