Feuling Parts Race Series® Oil System Kit — Twin Cam

Gear Drive cam systems require block-off plate kit PART #0932-0036.

Use with short-travel pushrods PART #0928-0116 on stock base circle

camshafts (FEULING® 525, 543 and 574 grinds) and PART #0928-0117 on small base circle camshafts (FEULING® 594 and 630 grinds).

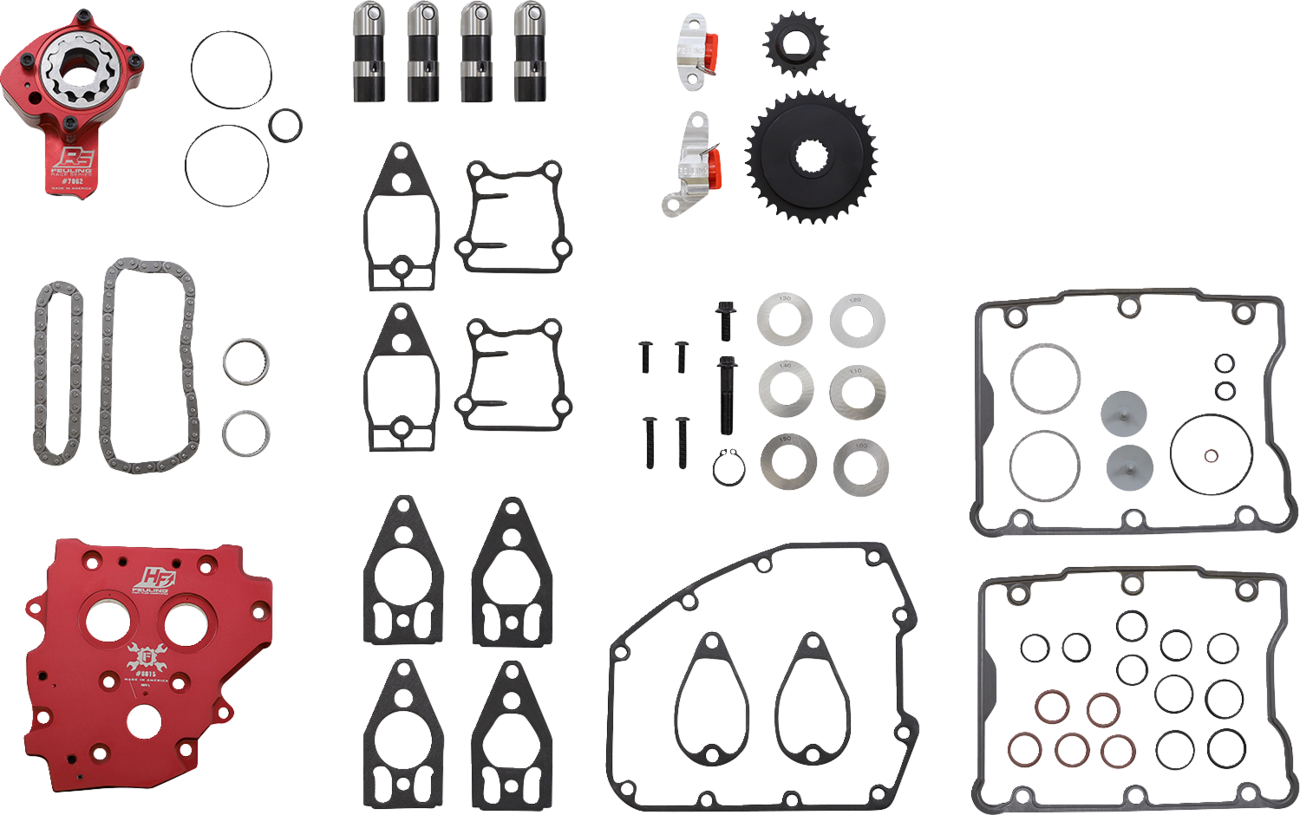

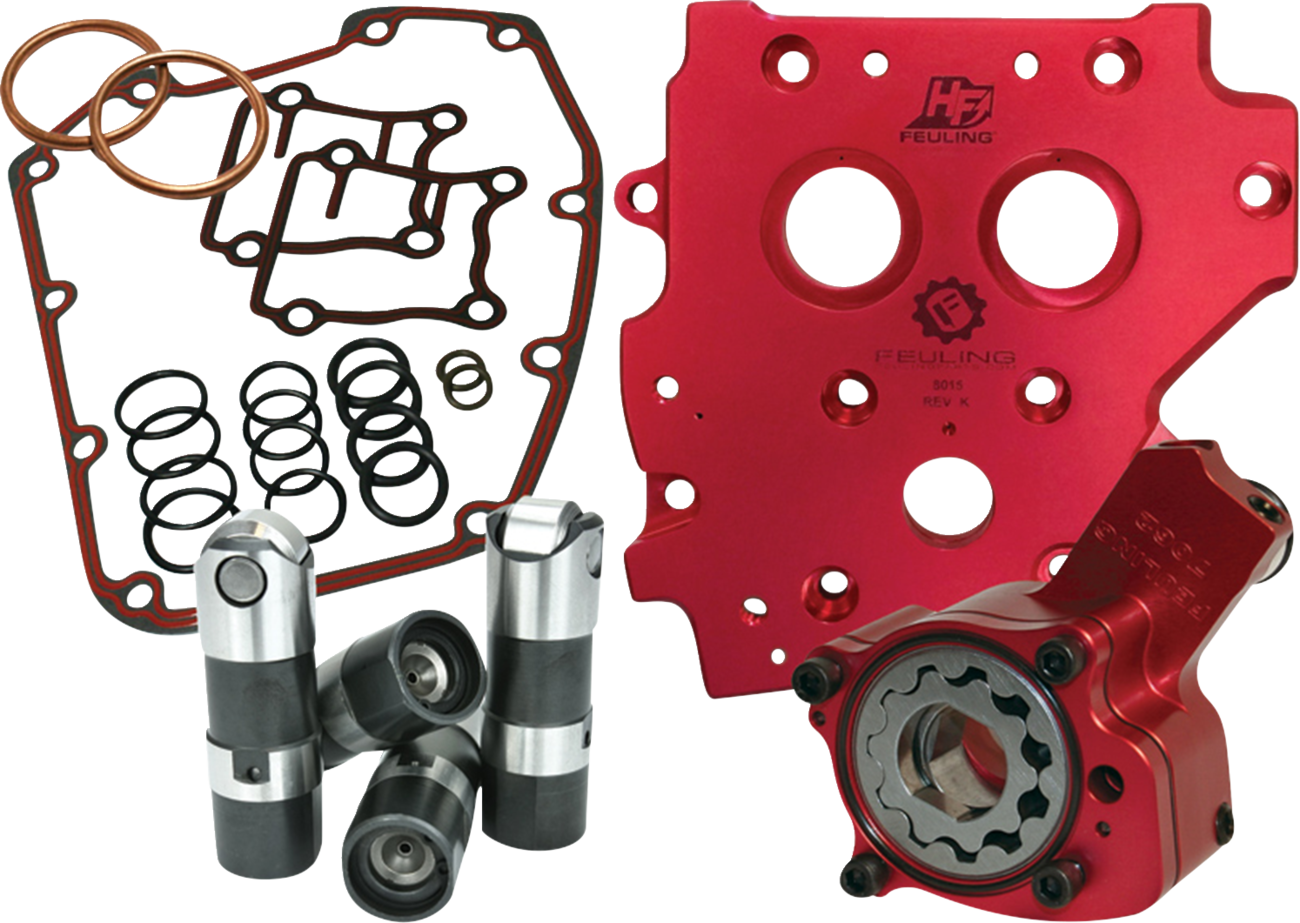

Includes gasket kit, Race Series® short travel lifters, Race Series® Oil Pump and anodized camplate.

• Combine all the needed components to finish your engine's oiling system
• Quieter and smoother engine operation
• Increase oil pressure, scavenge volume and engine oil flow
• 25°-35° cooler engine temperatures
• 15°-30° degree cooler oil temperatures
• 15-30 lbs more psi of oil pressure
• Eliminate wet sumping, blowby and oily air cleaners
• Test results show 3 horsepower gain and 4 ft./lb. of torque gain to the rear wheel
• Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature
• Race Series® full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed-down rate to handle very heavy valve spring pressures, increase engine rpm before valve float and have increased roller clearance for steep ramped camshafts
• Race Series® short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
• Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
• Includes bearing retainer plate and hardware.

Color/Finish

Aluminum, Red

Style

Chain Drive, Gear Drive

Features

Includes Short-Travel Hydraulic Lifters

Riding Style

Street

Model

Race Series®

Material

7075 Billet Aluminum

Units

Kit

Type

Oil Pump

Shipping weight

5 lb

Package size

14.2 × 8.7 × 3.5 in

Country of origin

USA

Salto part #

0932-0291

Feuling Parts part #

7075ST
