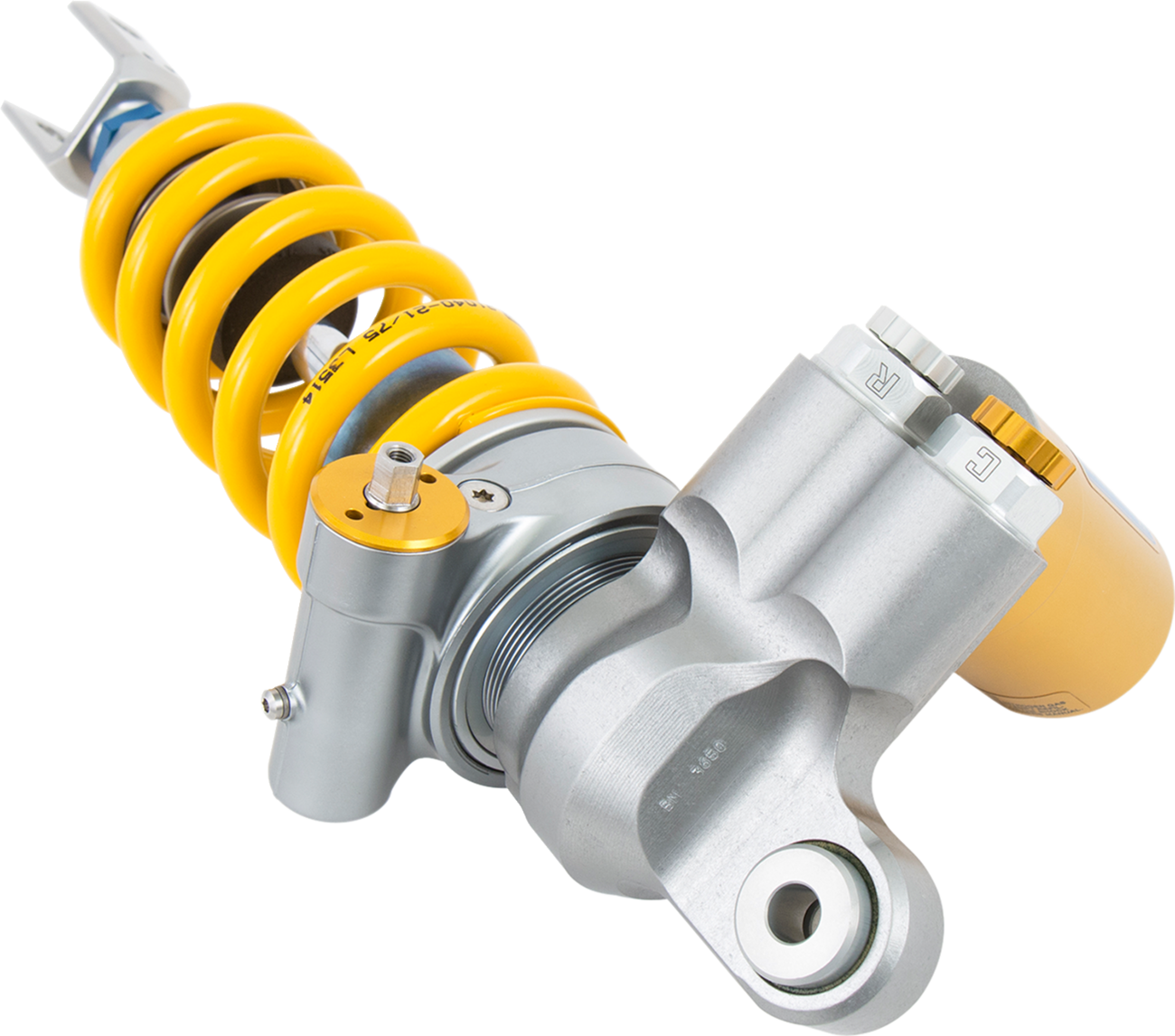

Öhlins TTX GP Shock Absorber (BM568)

This product should not be used with the BMW DDC system. This product should only be used with non-electronic units.

• Öhlins twin-tube shock technology

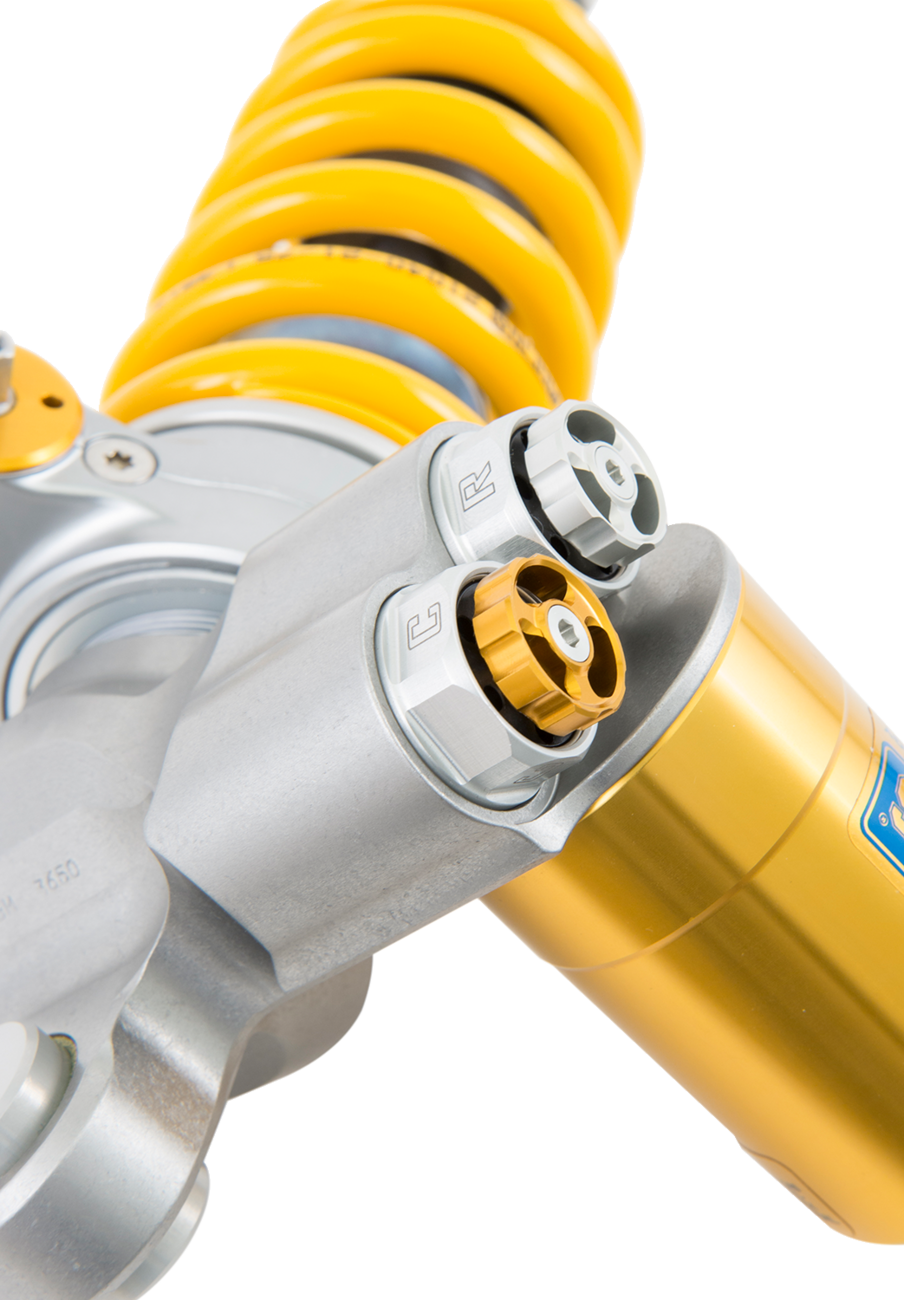

• Features needle profiles for compression and rebound adjusters
• Updated design results in improved oil flow guidance and volume control for more precise, consistent damping and better fine-tuning
• Available range of preload and compression adjustment is wider
• Rebound and compression are completely separated within the shock with no risk of cavitation
• Completely separate compression and rebound settings
• 36 mm shock primary piston redesigned for improved performance for better traction and feel
• Industry standard of minimized shock-to-shock variance
• Improved chassis feedback for superior rider feel and enhanced control

Adjustment Type

Integrated Hydraulic Spring Preload, Adjustable Compression Damping, Adjustable Rebound Damping, Adjustable Spring Preload, Adjustable Length

Color/Finish

Silver, Yellow

Linear Spring Rate

308.35 lb/in

Damping Method

Compression

Riding Style

Street

Type

Coilover Twin-Tube

Units

Each

Mounting Position

Rear

Reservoir Location

Piggyback

Model

TTX GP

Bore Size

1.42"

Extended Length

Standard

Shipping weight

9.1 lb

Package size

23.4 × 10.4 × 7.3 in

Country of origin

Sweden

Salto part #

1310-2039

Öhlins part #

BM 568

UPC

840153609770
