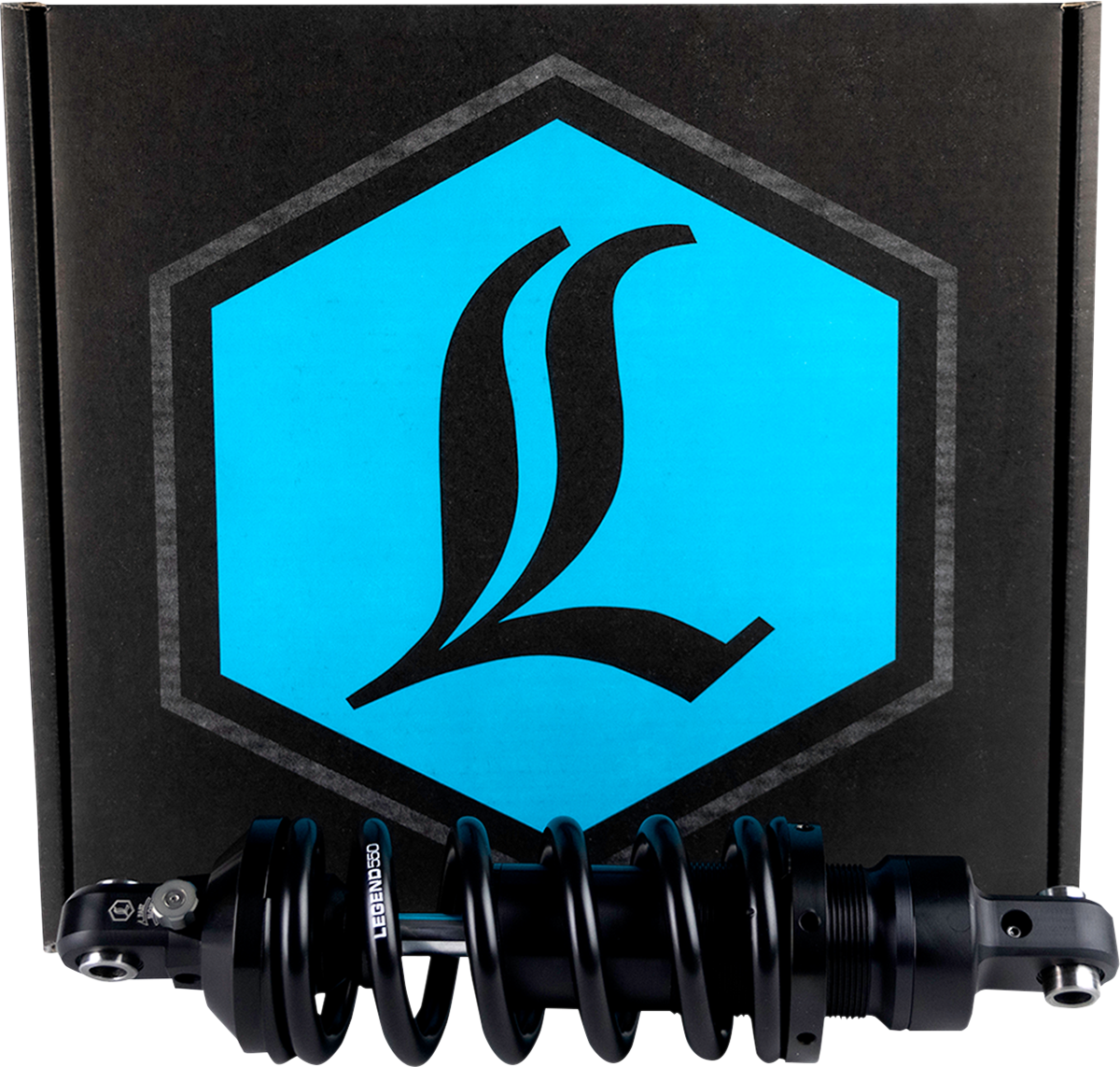

Legend Suspension REVO-A Mono Shock — 13" — Heavy Duty — M-Eight Softail Models

Standard length is 13" for FLHC/FXFB/FXLRS/FXLRST Models.

Heavy Duty applications recommended for 350 lb+ rider and passenger total weight. Heavy-duty is suggested if the majority of your riding is 2 up with a passenger and/or gear.

• Revo-A coil designed specifically for M-8 Softail models
• Available in 12.5", 13", and 13.5", standard or heavy-duty applications
• Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
• Legend's touring specific spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Features adjustable rebound damping that is specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
• Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
• Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
• Hard anodized, 46 mm billet aluminum mono tube design utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
• Hard chromed shaft is 14% larger for increased strength
• Internal floating nitrogen piston ensures consistent damping performance
• Deflective disc valving self-adjusts to frequency and ensures controlled performance
• Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
• Available in Black Type III hard coat anodize
• Easy installation that utilizes the OEM mounting hardware
• Included preload wrench makes adjusting easy
• Sold as Mono Shock (1 shock only)
• Designed for optimum performance with the Legend Axeo front suspension
• Made by hand in Sturgis, SD, USA

Adjustment Type

Adjustable Rebound Damping

Color/Finish

Black, Anodized

Model

Revo-A

Mounting Position

Rear

Type

Coilover Monotube

Extended Length

13.00"

Riding Style

Street

Units

Each

Damping Method

Deflective Disc

Duty

Heavy Duty

Material

Billet Aluminum

Shipping weight

10 lb

Package size

16.1 × 15.4 × 6 in

Country of origin

USA

Salto part #

1310-2250

Legend Suspension part #

1310-2250
