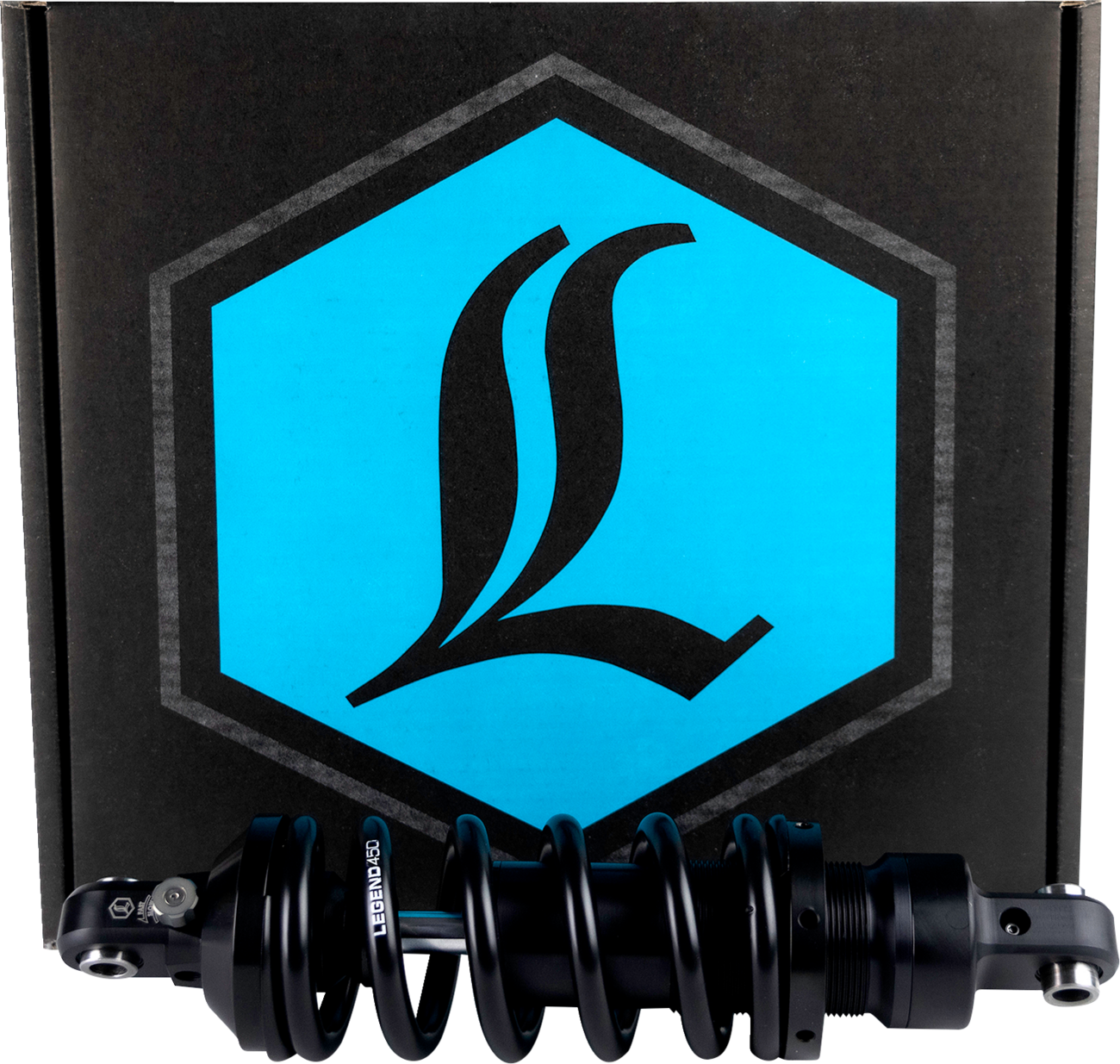

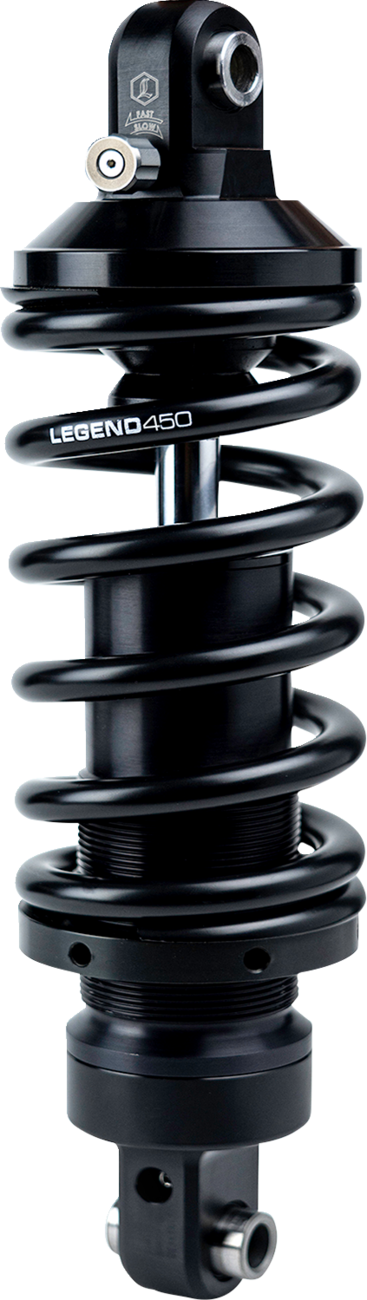

Legend Suspension REVO-A Shock — 12.5" — Standard

13" is standard length for FLHC/FXFB/FXLRS/FXLRST.

Heavy Duty applications are recommended for 350 lb + rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2 up with a passenger and/or gear.

• All new Revo-A coil design for the M-Eight Softail
• Available in 12.5", 13", and 13.5", standard or heavy-duty applications
• Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
• Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
• Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
• Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
• Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
• Hard chromed shaft is 14% larger for increased strength
• High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
• Internal floating nitrogen piston ensures consistent damping performance
• Deflective disc valving self-adjusts to frequency and ensures controlled performance
• Legend's durable and low friction sealing system and sliding bearings provide improved performance and feel
• Available in Black Type III hard coat anodize
• Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
• Sold as Mono Shock (1 shock only)
• Preload wrench included
• Designed for optimum performance with the Legend Axeo front suspension
• Lifetime Warranty
• Made by hand in Sturgis, SD, USA

Color/Finish

Black, Anodized

Riding Style

Street

Adjustment Type

Adjustable Rebound Damping

Units

Each

Model

Revo-A

Mounting Position

Rear

Material

Billet Aluminum

Reservoir Location

Internal

Duty

Standard

Extended Length

12.50"

Type

Coilover Monotube

Shipping weight

9.45 lb

Package size

16.3 × 15.4 × 5.6 in

Country of origin

USA

Salto part #

1310-2313

Legend Suspension part #

1310-2313
