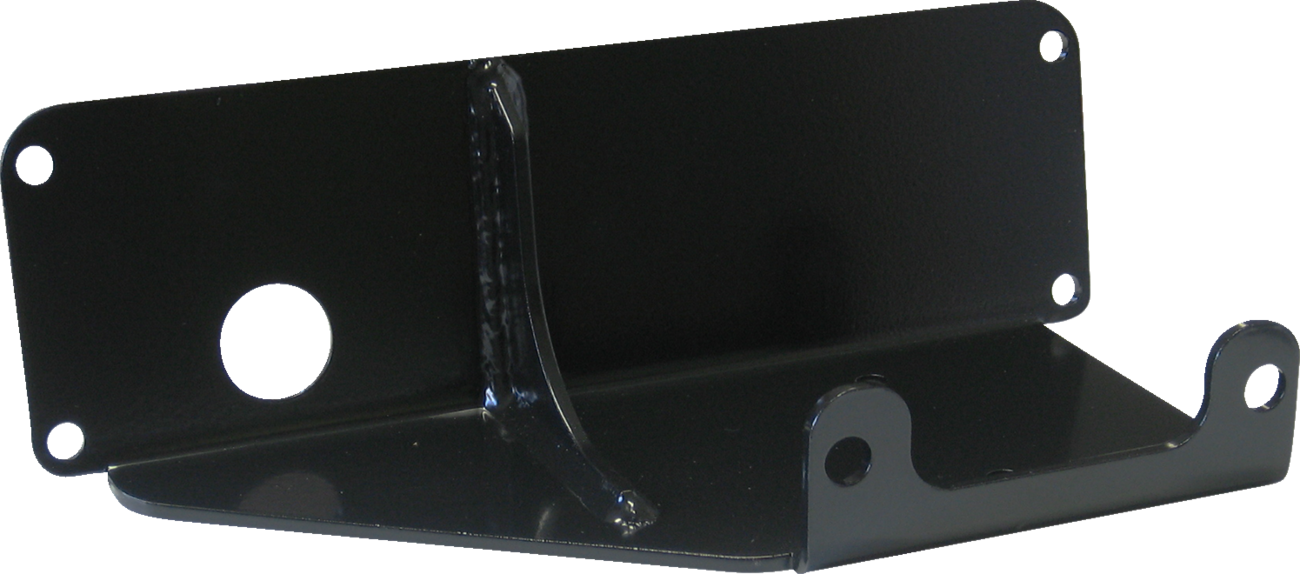

Kfi Products Upper Winch Mount — Can-Am

This winch mount is slightly off center and requires Can-Am bumper 715005754.

A wide winch would not require drilling; If you are installing a winch with a 3" x 4.88" bolt pattern, 1 of the holes will need to be drilled in the bumper, using our mount as a template.

• Upper winch mount for UTV OEM bumper
• Constructed of 3/16” steel
• Metal bead blasted before they are powder coated for the best possible finish prep for durability
• Complete installation instructions included
• All mounting hardware included
• Roller fairlead and winch not included
• 100% made in the USA
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: AXON 35 / AXON 35-S / AXON 45RC / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb / Vantage 4000lbs / Provantage 4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY: Powermax 2500, 3500
• BADLAND, CHAMPION: Standard Winches, WIDE Winches
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 Hardcore Series with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1078302 requires roller fairlead with a 4.875" bolt pattern
• QUADBOSS: RP25 / RP35
• 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
• Possibly many others with standard mounting patterns such as 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) and 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)

Compatibility

ATV3000, KT2500, KT3000C, PE2500, RT/XT25, SE25, Venom 3000, Axon 55, LT4000ATV, Axon 35, Axon 45, Axon 45RC, LT4000SR, Provantage 2500, Provantage 3500, Provantage 4500, Vantage 3000, Venom 2500, 1.5ci, AS-50, U2500, Vantage 2000, VRX-45, 1078302, ATV2500, KT3000, RT/XT30, RT/XT40, 1078088, LT3000, PE3500, RT/XT15, SE35, Venom 2000, VMX2.5, VRX-35, A2000, A2500-R2, KT2500C, PE2.5, PE3.5, VRX-25, 2.5ci/2.5ce/2.5s, A3000, Vantage 4000

Material

Steel

Color/Finish

Black, Powder-Coated

Type

Winch

Units

Each

Riding Style

UTV

Shipping weight

11.85 lb

Package size

16.3 × 9.5 × 3.3 in

Country of origin

USA

Salto part #

4505-1123

Kfi Products part #

102020

UPC

748252681195

In stock at a distributor warehouse. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is re-checked with the warehouse before your card is charged.

Is it in stock?

Yes — the distributor shows it on a shelf at a regional warehouse right now. We check again the moment you order, before anything is charged.

How fast will it get to me?

Usually 2–4 business days by ground.

Will it fit my machine?

The distributor lists it for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.

Is this genuine Kfi Products?

Yes. It ships new from the same distributors the big online stores buy from — Kfi Products part #102020.
