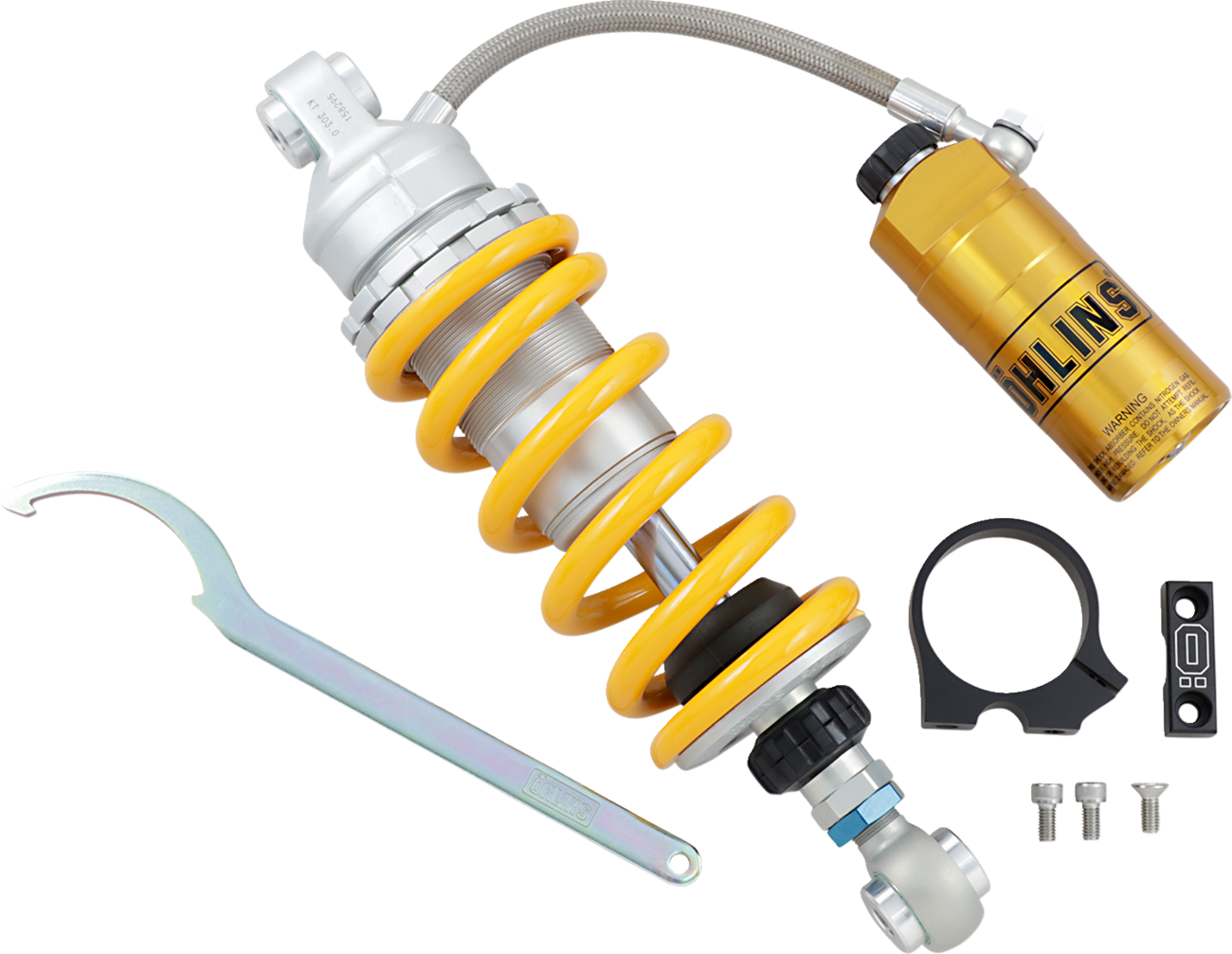

Öhlins Shock — 12.5" — STX Performance — Preload Side Cover (HD514)

Öhlins · #1310-2420 · Rear Suspension / Suspension & Frame

STX single-tube design
Monotube shock with internal reservoir
High-pressure nitrogen gas-charged
46 mm piston diameter
Adjustable rebound damping

$1098.90

In stock. Ships in 2–4 business days · free shipping over $150.

Questions? Call the shop: 801-361-3010

Real shop · real humans · 1231 N 1300 W Ste A, Centerville, UT 84014

Shop all Öhlins
Everything we carry from Öhlins →

Description & features11 features

Includes Spring: Ohlins Part # 21102-36 (B)

Stroke length: 1.713"

Weight range: 150 lb – Max 220 lb

STX single-tube design
Monotube shock with internal reservoir
High-pressure nitrogen gas-charged
46 mm piston diameter
Adjustable rebound damping
Hose-mounted hydraulic preload adjuster
Multiple spring rates available to accommodate a wide range of riders
Top-level comfort, rideability, and performance
Hard-anodized precision CNC-machined components
Low-friction shaft and sealhead design
Fully serviceable and repairable

Specifications11 specs

Model: STX Performance
Riding Style: Street
Material: Aluminum
Mounting Position: Rear
Extended Length: 12.618"
Features: Maximum 220.00 lb Rider Weight
Linear Spring Rate: 105 n/m
Units: Each
Shipping weight: 0.01 lb
Package size: 0 × 0 × 0 in
Country of origin: Sweden

Fitment8 models · Harley-Davidson

Harley-Davidson8 models

FLDE Deluxe 1072018–2020
FLSL Softail Slim 1072018–2021
FXBB Street Bob 1072018–2020
FXBBS Street Bob 1142021, 2023–2024
FXLR Low Rider 1072018–2020
FXLRS Low Rider S 1142020–2021
FXLRS Low Rider S 1172022–2025
Softail Street Bob FXBB2022, 2025

Fitment comes from the catalog data for this part. Double-check your year, model and trim before you order — or call the counter at 801-361-3010 and we’ll check it with you.

Part numbers

Salto part #: 1310-2420
Öhlins part #: HD 514
UPC: 840153631672

Shipping

In stock. Ships in 2–4 business days by ground.

Ground shipping is $14.95, free on orders over $150. Stock is checked again before your card is charged.

Questions4 answers

Is it in stock?: Yes — it’s in stock right now. We check again the moment you order, before anything is charged.
How fast will it get to me?: Usually 2–4 business days by ground.
Will it fit my machine?: It’s listed for the models in the Fitment section above. Not sure about your trim or year? Call the counter at 801-361-3010 and we’ll check it with you.
Is this genuine Öhlins?: Yes. It’s new and genuine, straight from Salto — Öhlins part #HD 514.
